SPECIAL APPLICATIONS EQUIPMENT

FOR THOSE WHO WORK

ON THE WATER

Based on a well-established frame of reference, this wealth of experience, makes Milpro able to provide you with the dedicated training courses shaped to your specific need all over the world, even in our own training bases.

“Define your needs, and we provide solutions.”

WATER OPERATIONS

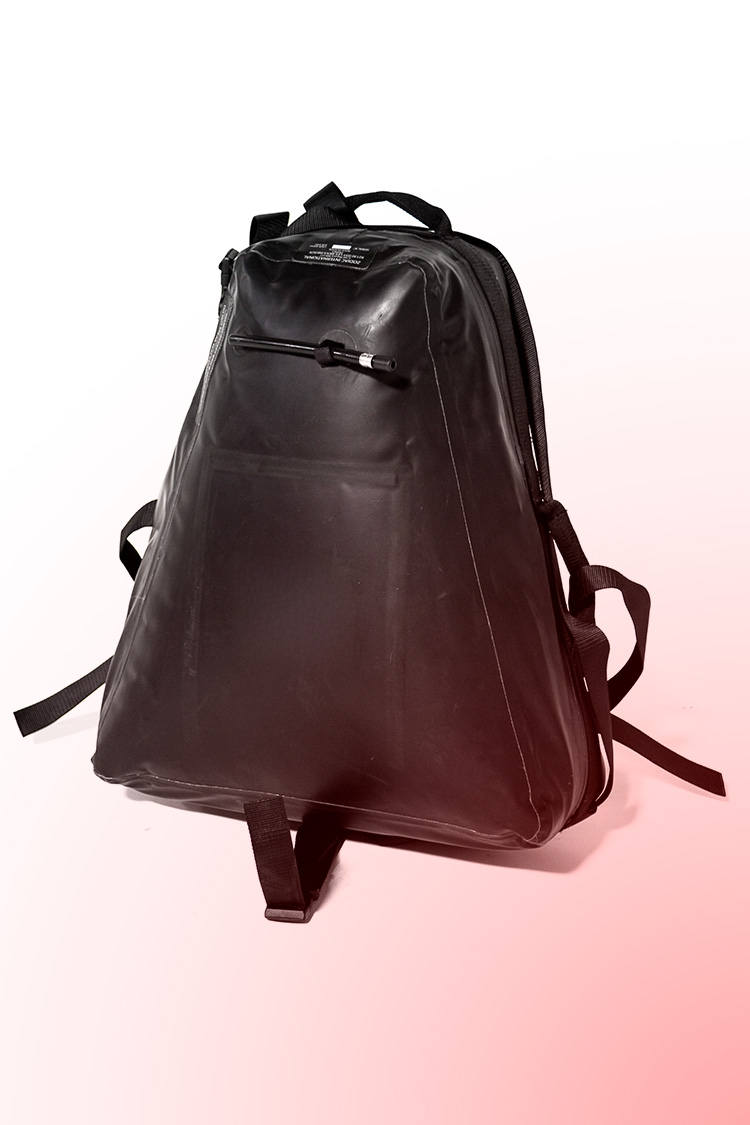

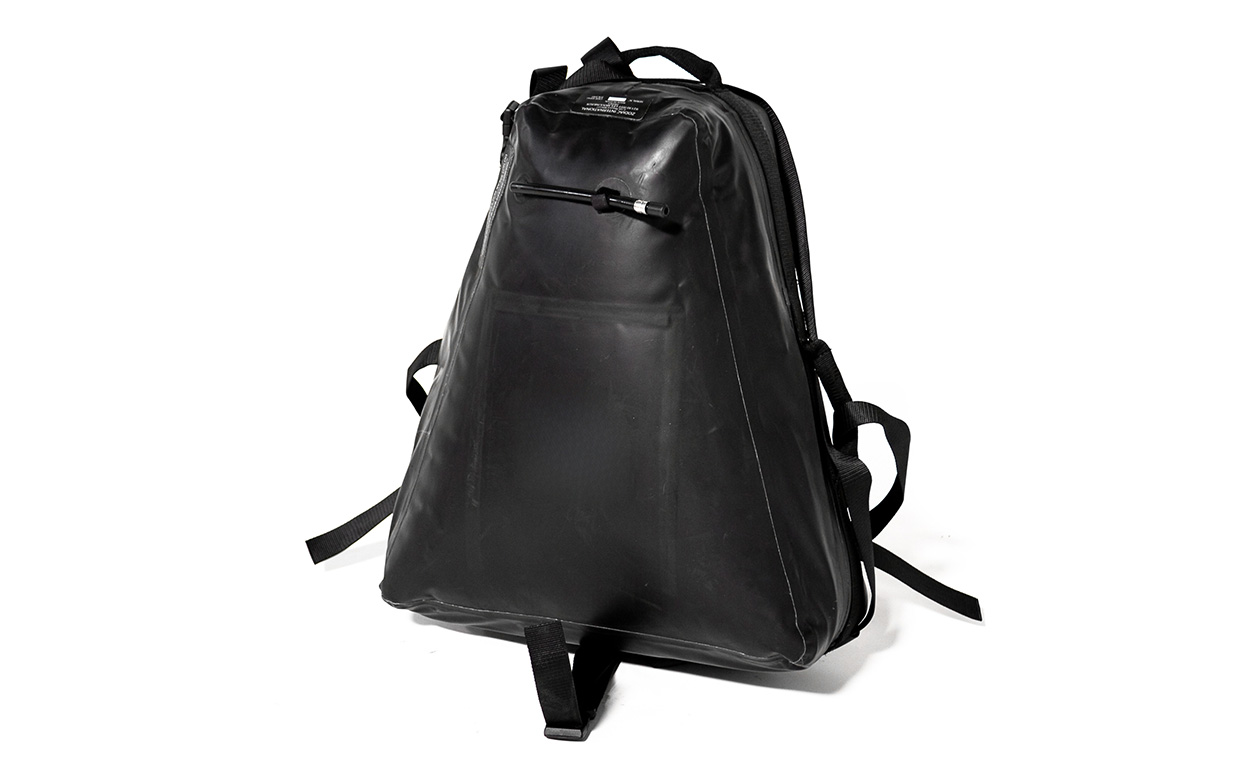

WATERTIGHT BOWBAG

The Zodiac Milpro watertight bow bag is specially designed to be secured at the bow of a boat.

The bag access cover is fitted with an airtight zipper and an oral inflation/deflation device. By rotation this corrosion resistant valve, it is possible to adjust the negative or positive buoyancy of the bag by deflating or inflating it.

Four strong carrying handles allow the handling of this bag with its full content. Handles are integral part of a belt that goes around the whole bag, so as to distribute the load evenly.

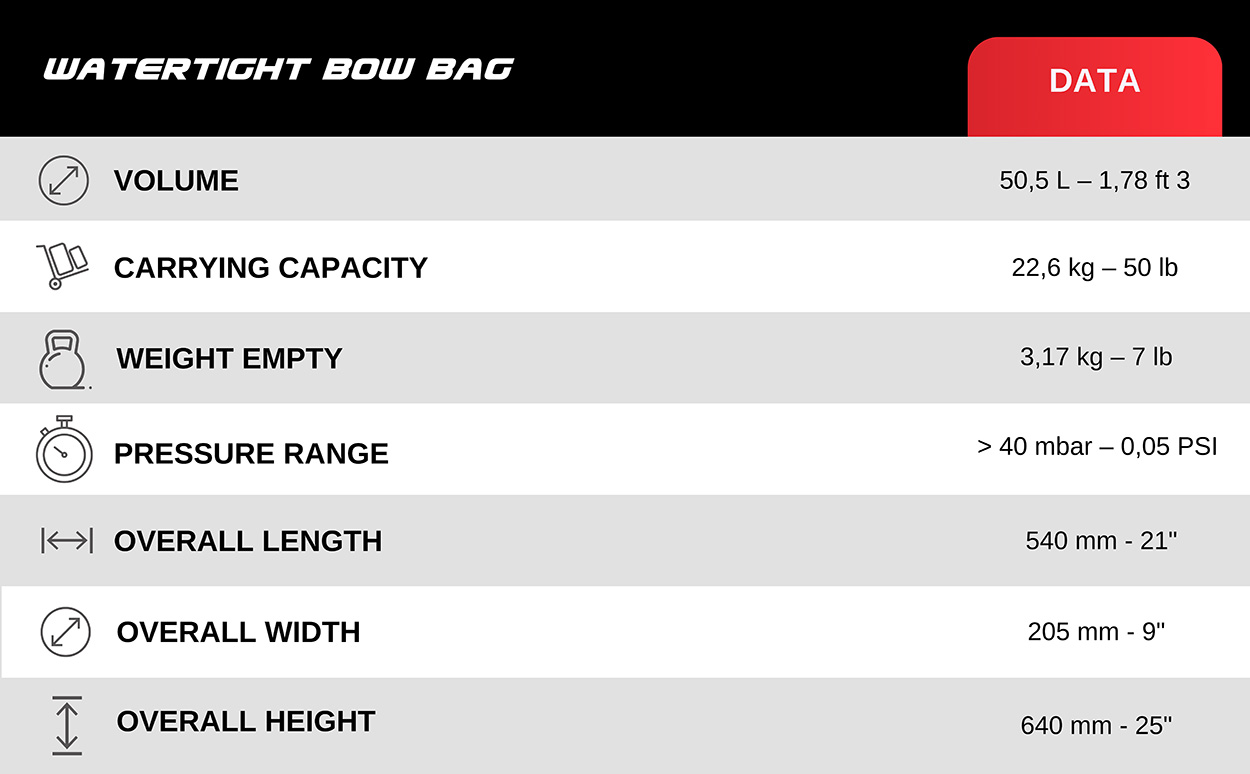

WATERTIGHT BOW BAG	DATA
VOLUME	50,5 L – 1,78 ft 3
CARRYING CAPACITY	22,6 kg – 50 lb
WEIGTH EMPTY	3,17 kg – 7 lb
PRESSURE RANGE	> 40 mbar – 0,05 PSI

DOWNLOAD TDS

AIR DELIVERY

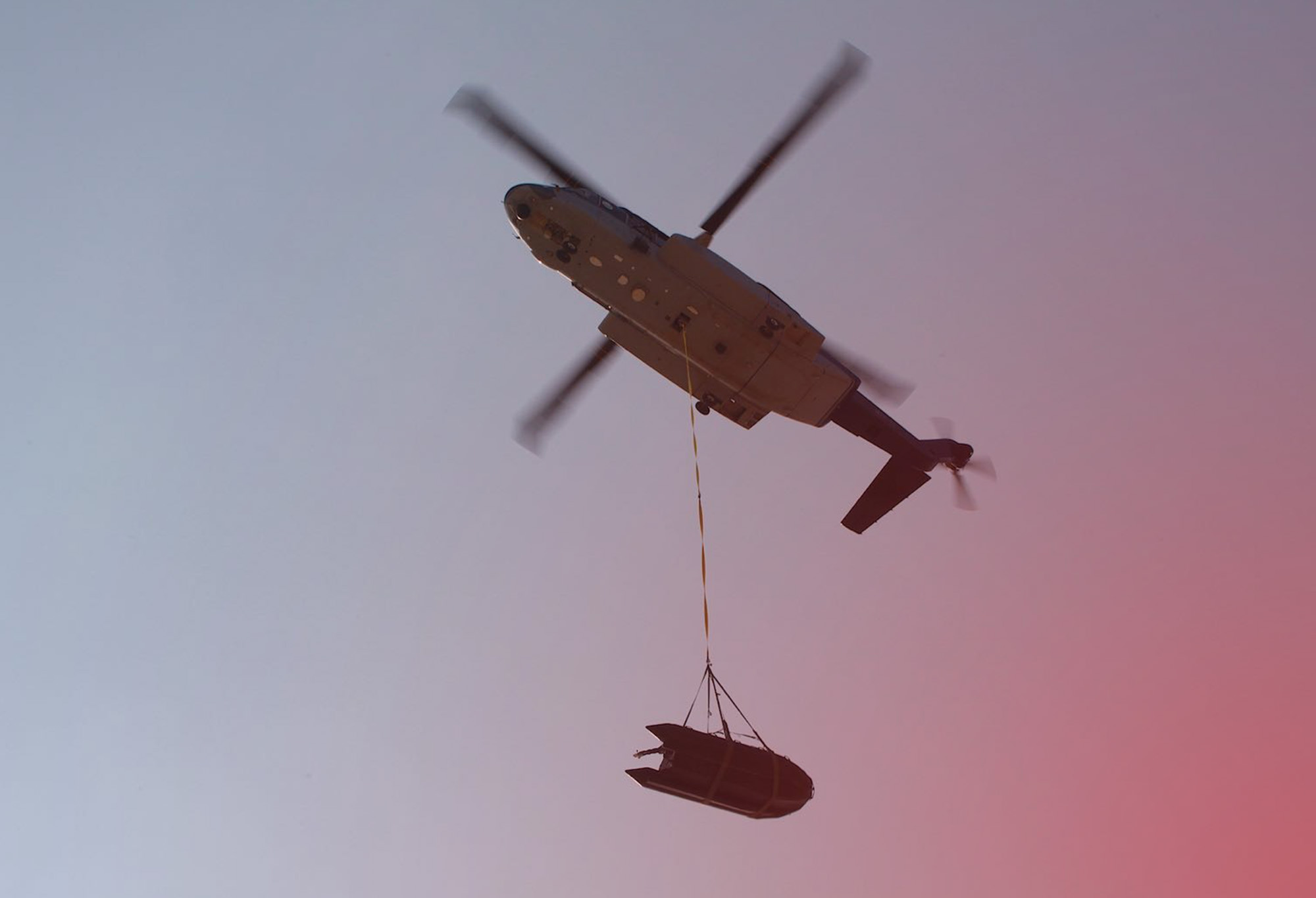

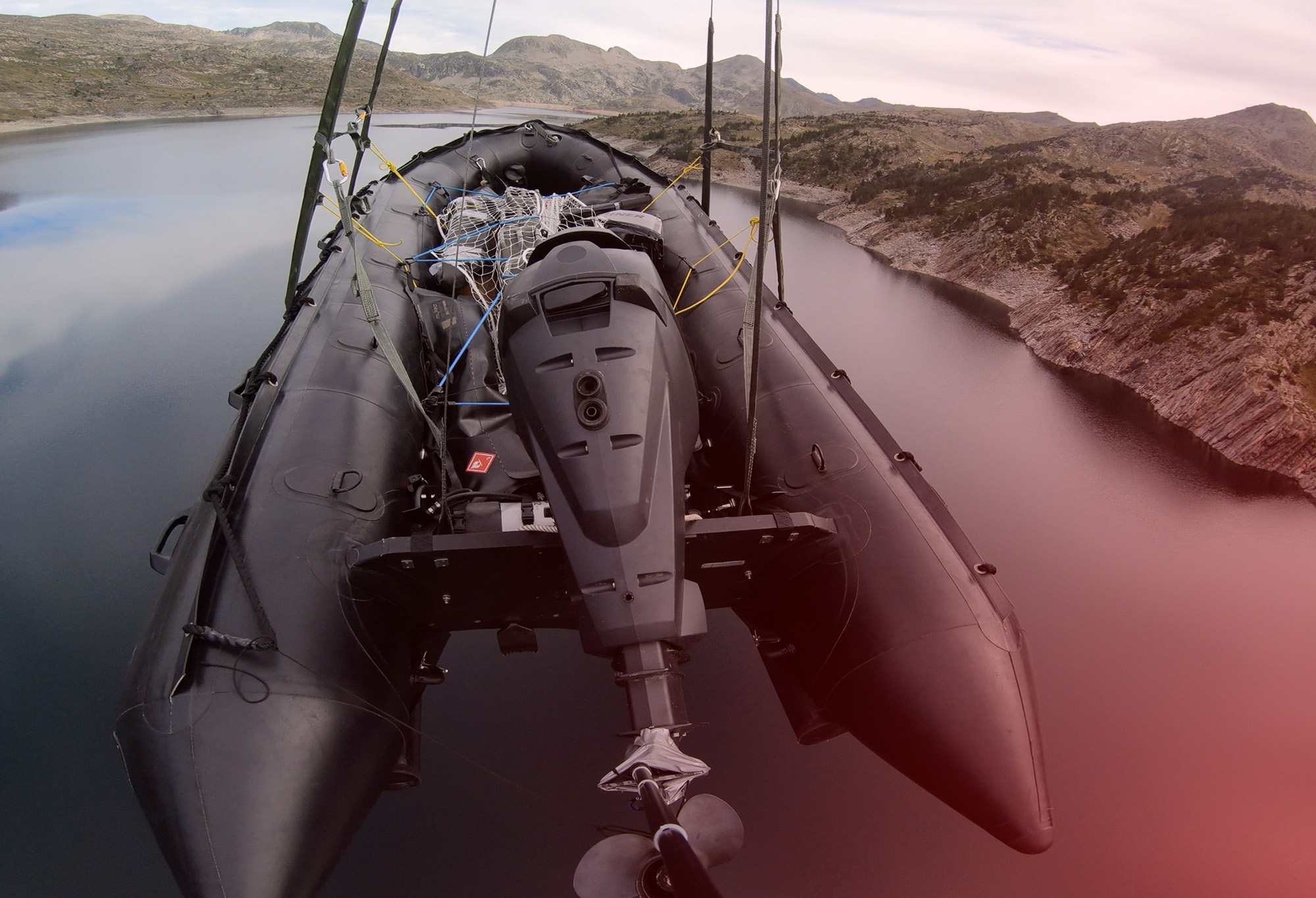

HELISLING KIT

Milpro™ answers the needs of Special Forces worldwide by developing operational packages for our FC range combat crafts : Underwater caché, Helidrop, Airdrop, etc….

Milpro™ adds a new innovating item to these capabilities and introduces the Helisling, a Helicopter Sling transport system for inflatable boats.

The Helisling system transport inflatable boats under helicopter with boat in ready-to-operate configuration. It is fast-deploy at sea (or land), fast-recover at sea (system installed on the water) and can be stored onboard during mission (rolled in a waterproof bow bag).

DOWNLOAD TDS

Designed for compliance to STANAG 3542 and IATA standards.

Complies with US-EU civil regulations and NATO military requirements for helicopter sling loads.

6 legs maintained in position with intermediate cross-way legs.

Light (19Kg), flexible and compact system

Fast to install, using boat lift points and fittings.

Fast to adjust to different sizes of boats

Fully compatible with Zodiac Milpro™ FC boat range special features and mission capabilities (Underwater cache and Helidrop still feasible).

Long-lasting and adapted to marine environment

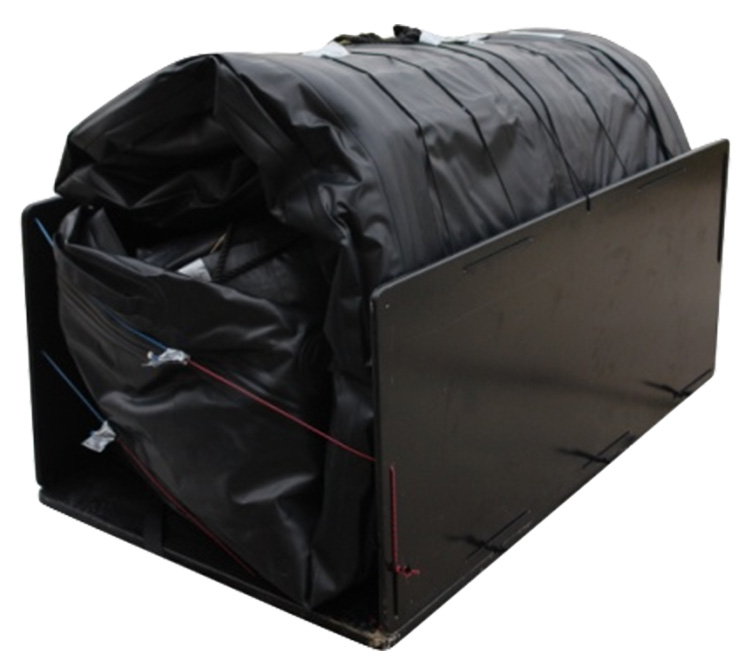

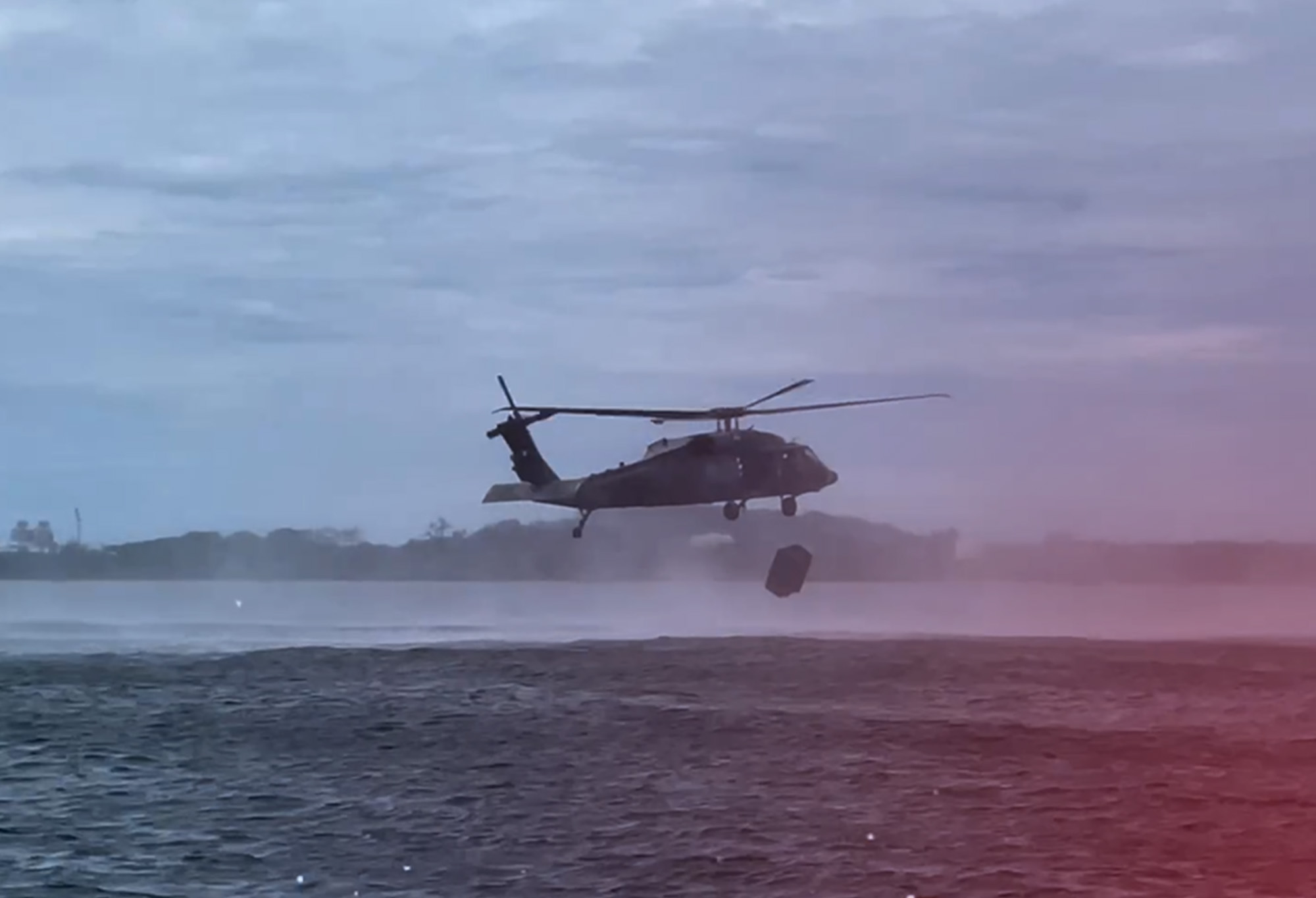

HELIDROP KIT

Milpro Airdrop and Helidrop solutions are developed to meet the specific military requirements of SpecOps deployment. Its specific features provide the capacity to military users to deliver rapidly their inflatable boat or RIB around the world, during night/day operations.

From low to high altitude, Milpro is mastering these techniques to allow boats to be dropped from tactical helicopters or transport aircraft, and makes them fully operational after reaching the water.

Milpro experience in this field, provides capacity to train any military forces and supply associated equipment to drop boats with sizes from 3,80 m (12,5 ft) to 11,5 m (38 ft) and weight from 50 kg (110 lb) to 8 000 kg (17 000 lb).

DOWNLOAD TDS

ADAPTED TO

FC 420

FC 470 & Evol 7

FC 530

ERB 380

ERB 400

These Milpro™ techniques can also be used complementary to Underwater Caché, allowing hiding the boat after the drop.

BALLISTIC PROTECTION

ARMORFLATE KIT

Fast deployment

Inflation manually triggered

Protect Buoyancy tube, Engine and Crew

Customizable level of protection

Milpro™ inflatable panel system can hold different kind of armor material which combines high protection level and light weight. The rigid armor plates are simply inserted in holding pouches, distributed in several overlapping sections so they can fold when the system is deflated.

The armor plates are not provided by Milpro as standard. You can choose the armor plates. from various manufacturers using the specifications hereafter for their optimum dimensions and weight.

Download TDS

SPECIAL CRAFTS

RESCUE SLED

Our rescue sled is a robust inflatable platform with anti slip surface designed for rapid deployment. Attached behind an inflatable , or rigid inflatable rescue craft, The sled can be towed at speed, and is ideal for mass evacuation, transporting people from flood and surf scenarios.

Can be used independently as a rescue platform to rescue casualties from shallow water, mud, ice, sand and unstable ground.

Download TDS

RESCUE SLEDGE	DATA
MAX PAX	2
MAX PAYLOAD	210 kg – 462 lbs
FLOORBOARD USABLE AREA	3,69 m² -39,7 ft²
OVERAL LENGTH	3,00 m – 9′ 10”
OVERAL WIDTH	1,43 m – 4′ 8”
WEIGHT	13 kg – 28,6 lbs

RESCUE TRACK

Our rescue track is a robust inflatable platform with anti slip surface designed for rapid deployment over the harshest of terrain including mud, ice, shallow water, unstable ground; sand and marsh. complete with integral sponsons providing stability on water, as well as preventing the track sinking into soft ground.

Light and portable, the inflatable platform enables rescuers to gain access to casualties safely and efficiently. Can be connected together for extended reach.

Available in 5 and 10 meter lengths.

Download TDS

RESCUE TRACK 5M	DATA
MAX PAX	5
MAX PAYLOAD	500 kg – 1102 lbs
FLOORBOARD USABLE AREA	6,85 m² – 73,73 ft²
OVERAL LENGTH	5,00 m – 16′ 5”
OVERAL WIDTH	1,43 m – 4′ 8”
WEIGHT	33,7 kg – 74,3 lbs

RESCUE TRACK 10M	DATA
MAX PAX	10
MAX PAYLOAD	1000 kg – 2204 lbs
FLOORBOARD USABLE AREA	13,7 m² – 147,46 ft²
OVERAL LENGTH	10,00 m – 32′ 10”
OVERAL WIDTH	1,43 m – 4′ 8”
WEIGHT	67,5 kg – 148,8 l
